Compact Power for Tight Jobs

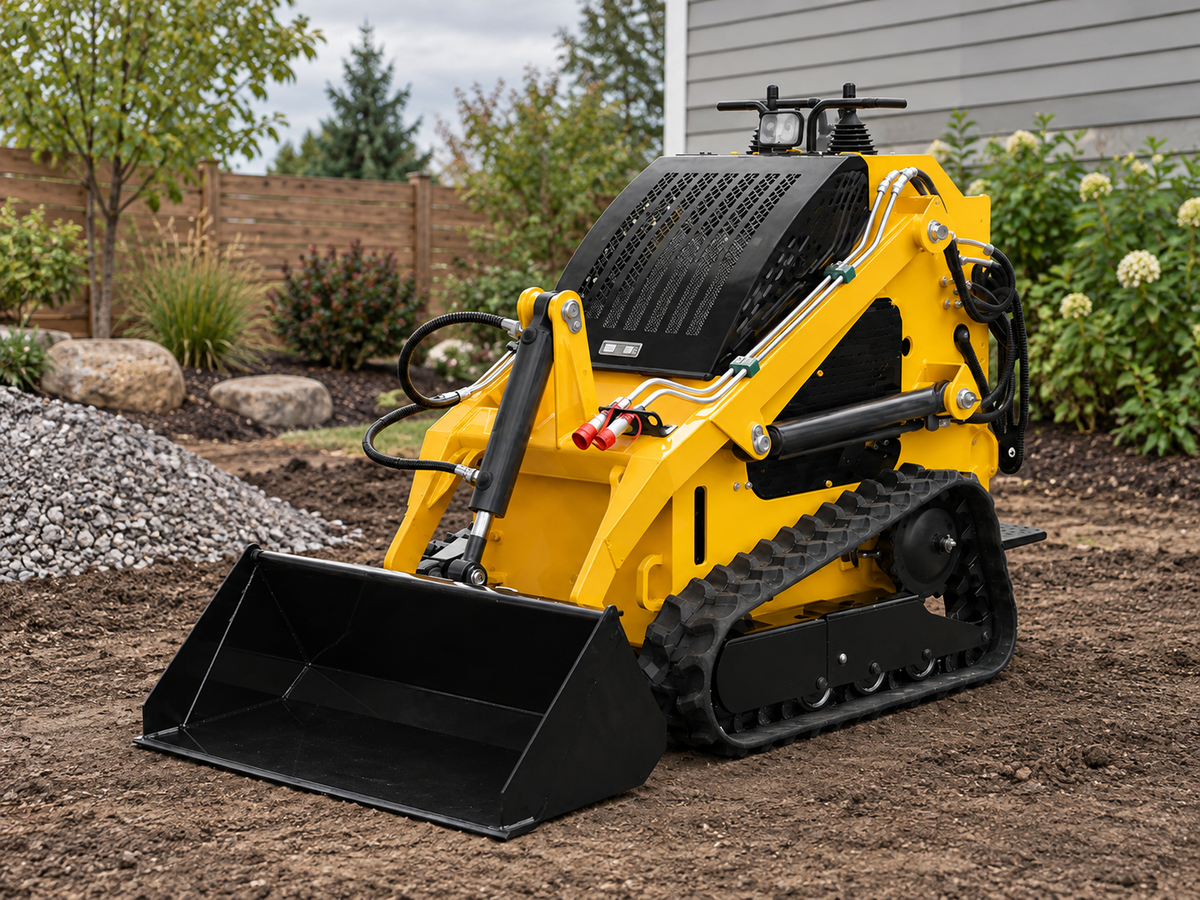

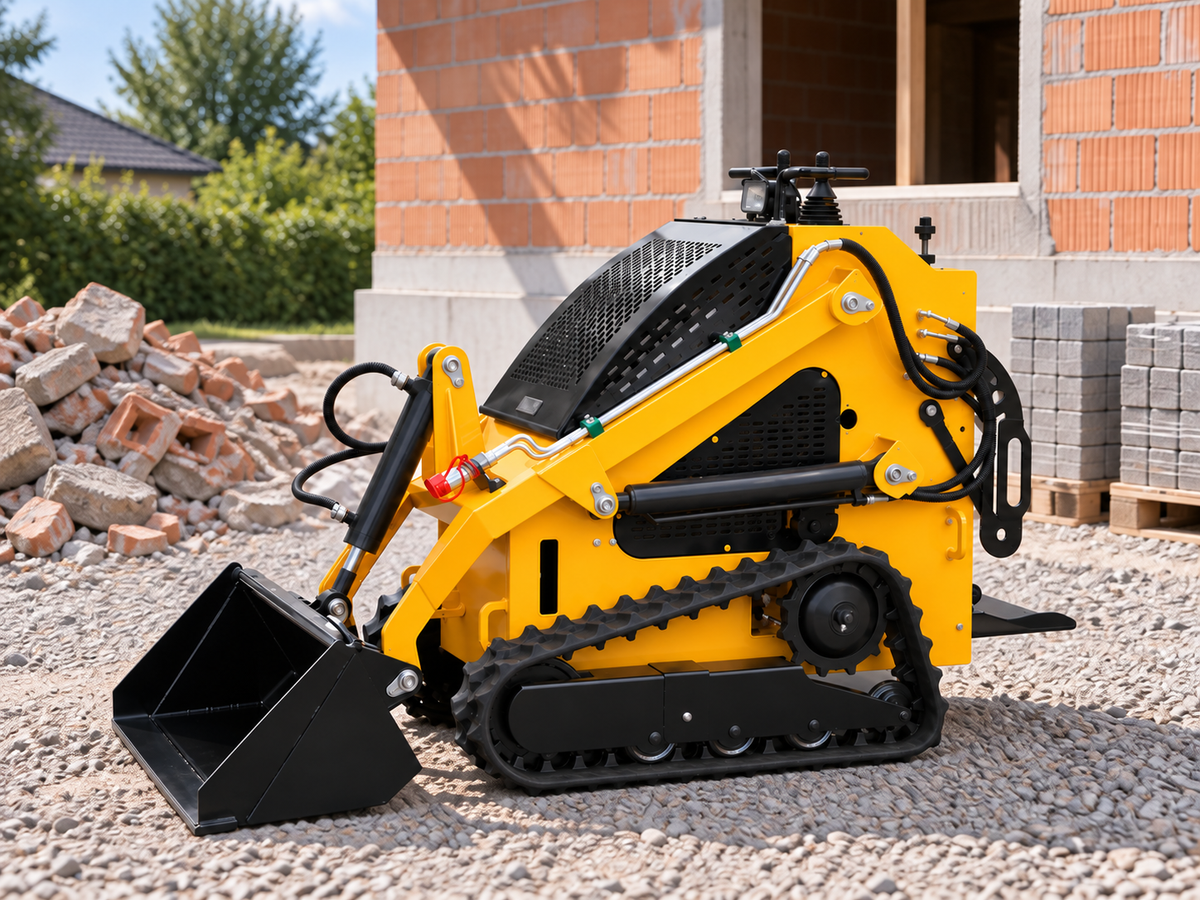

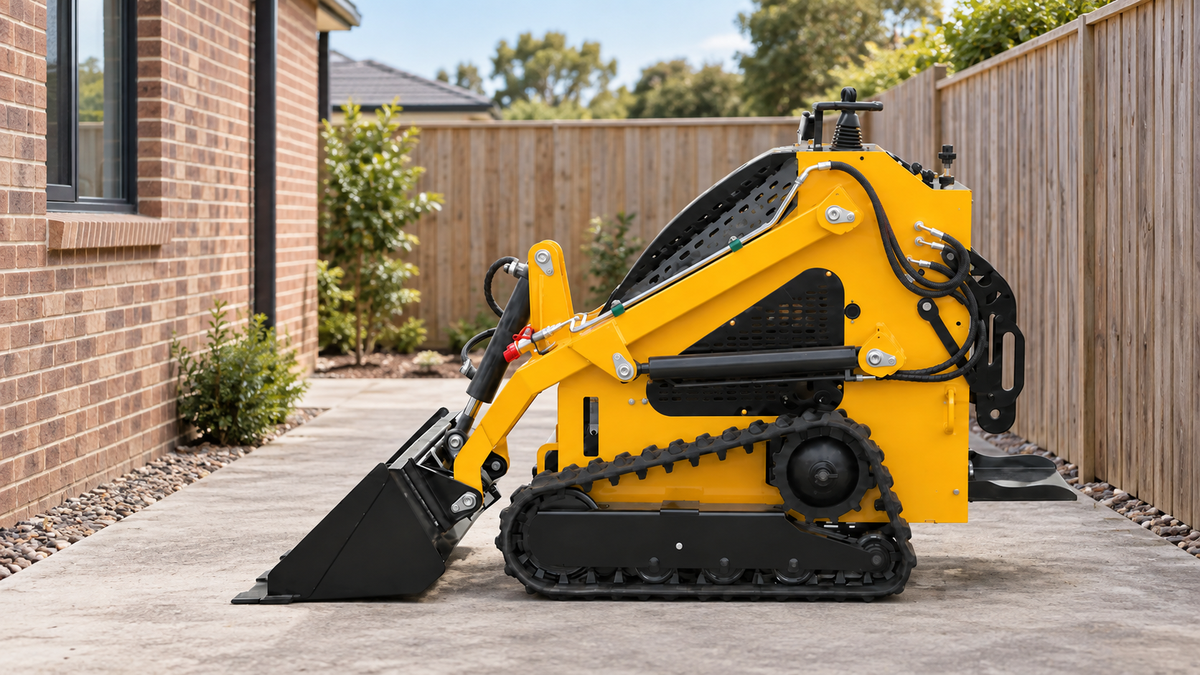

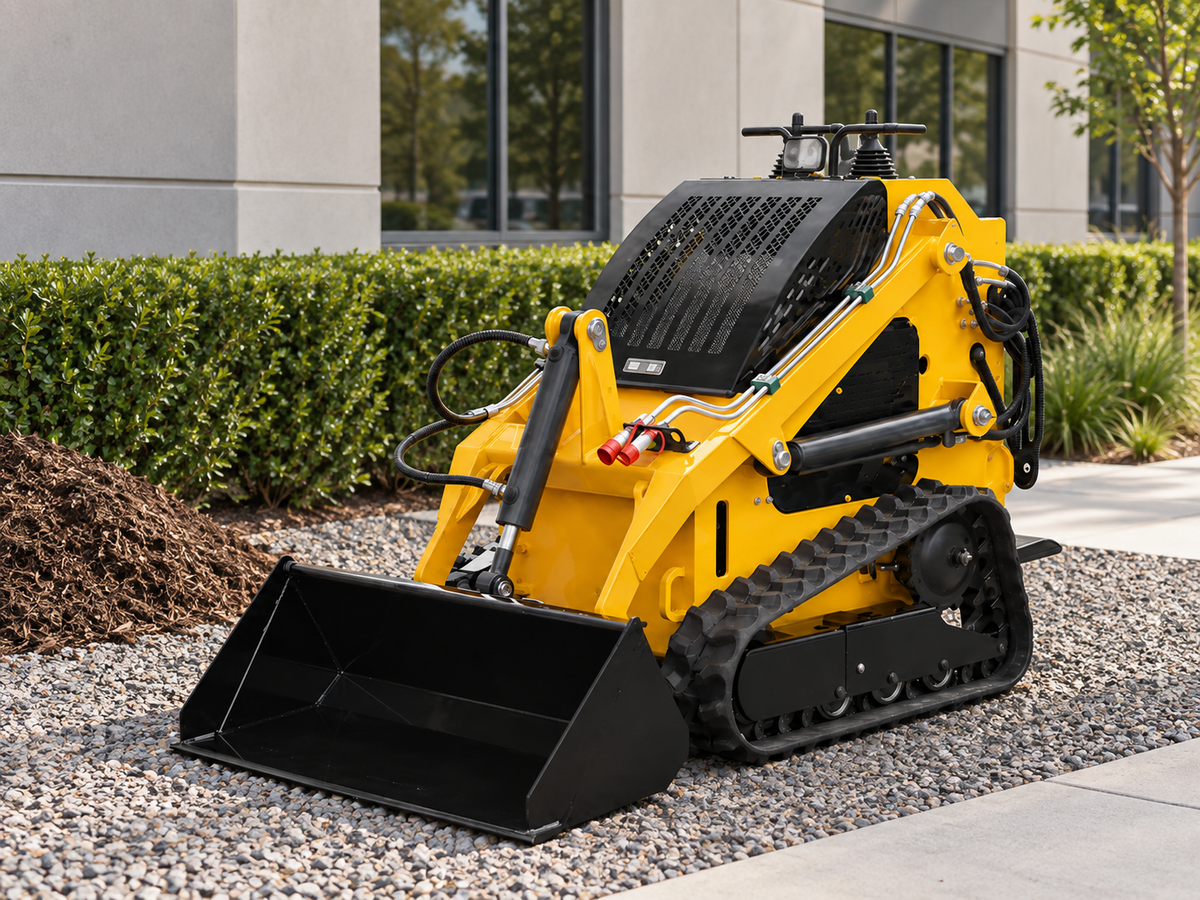

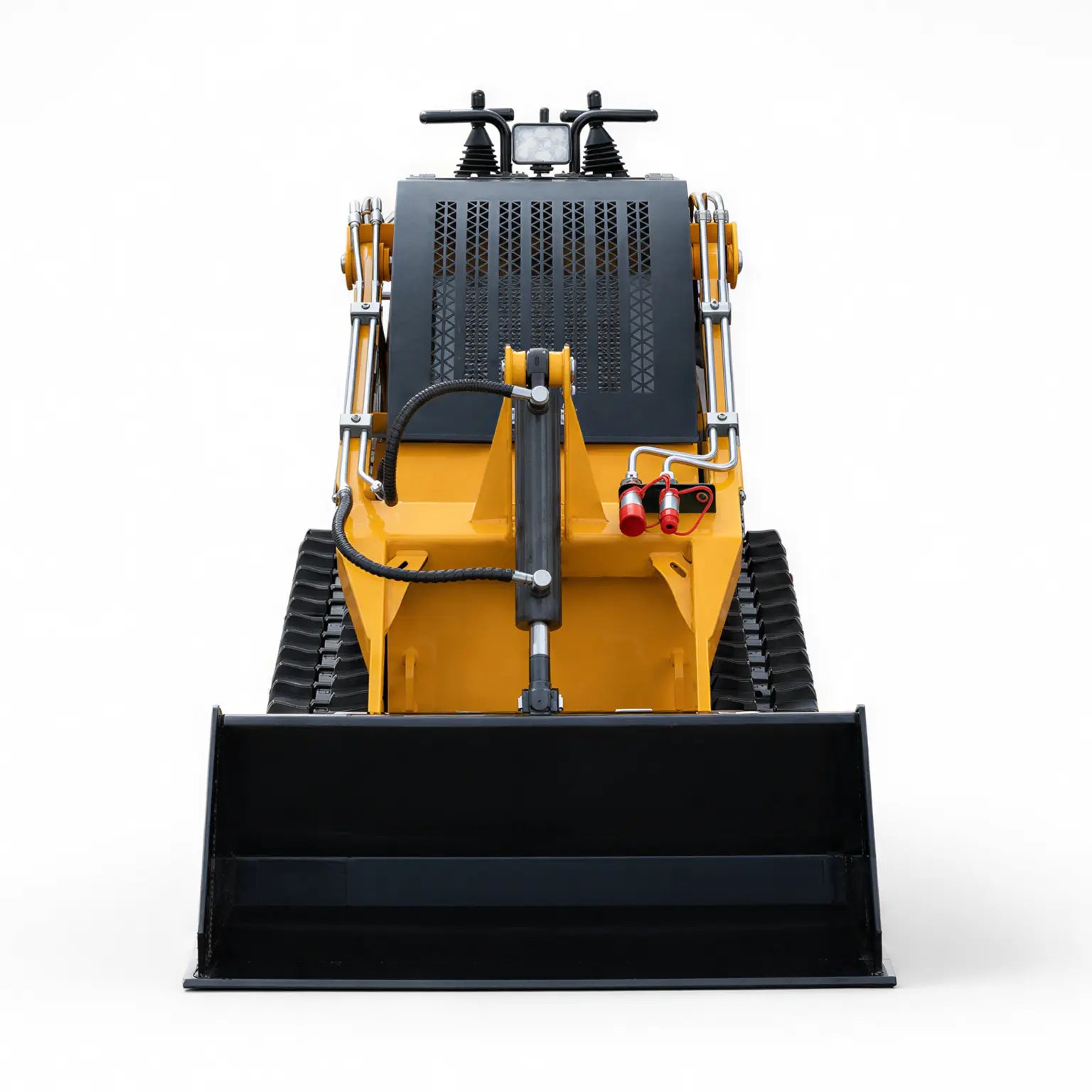

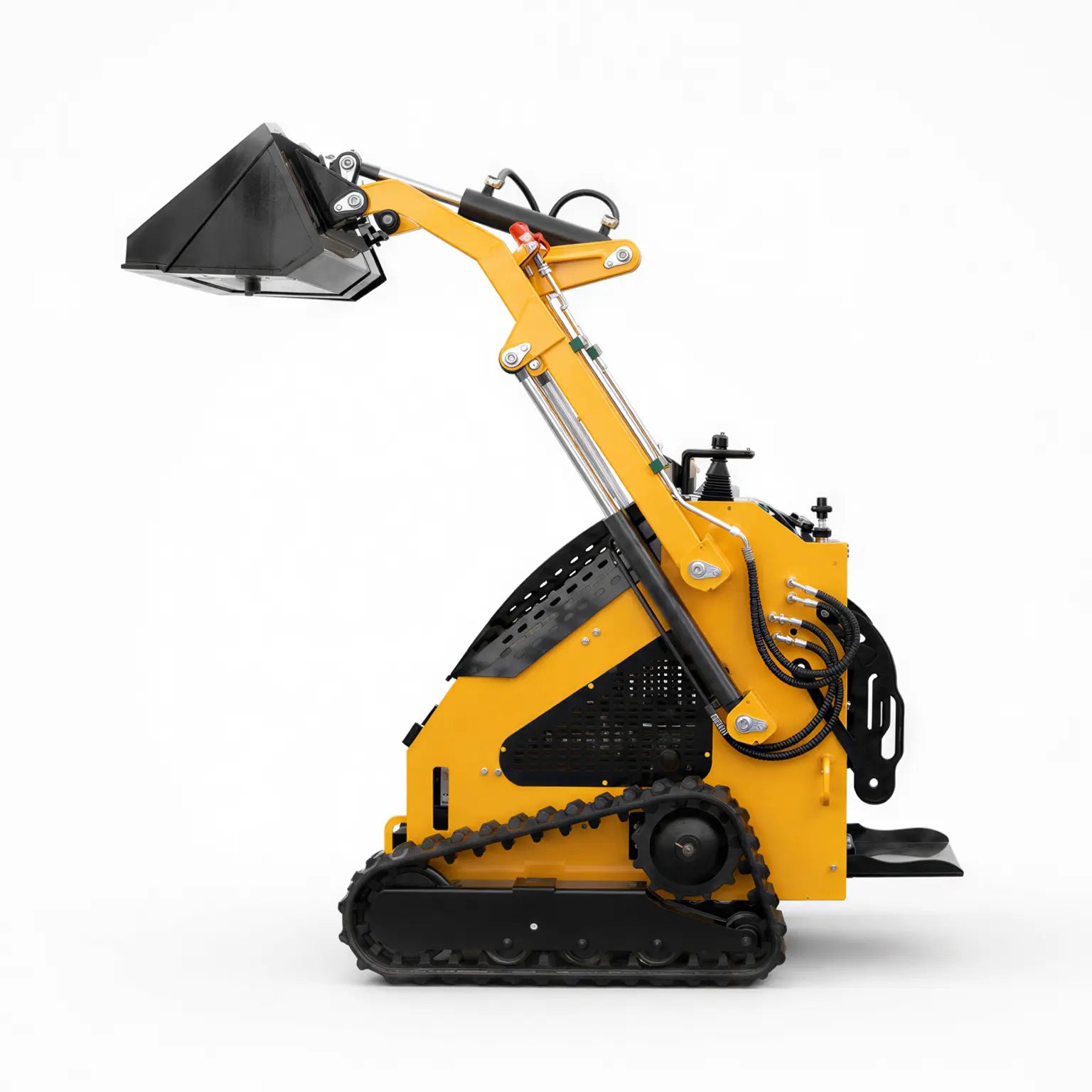

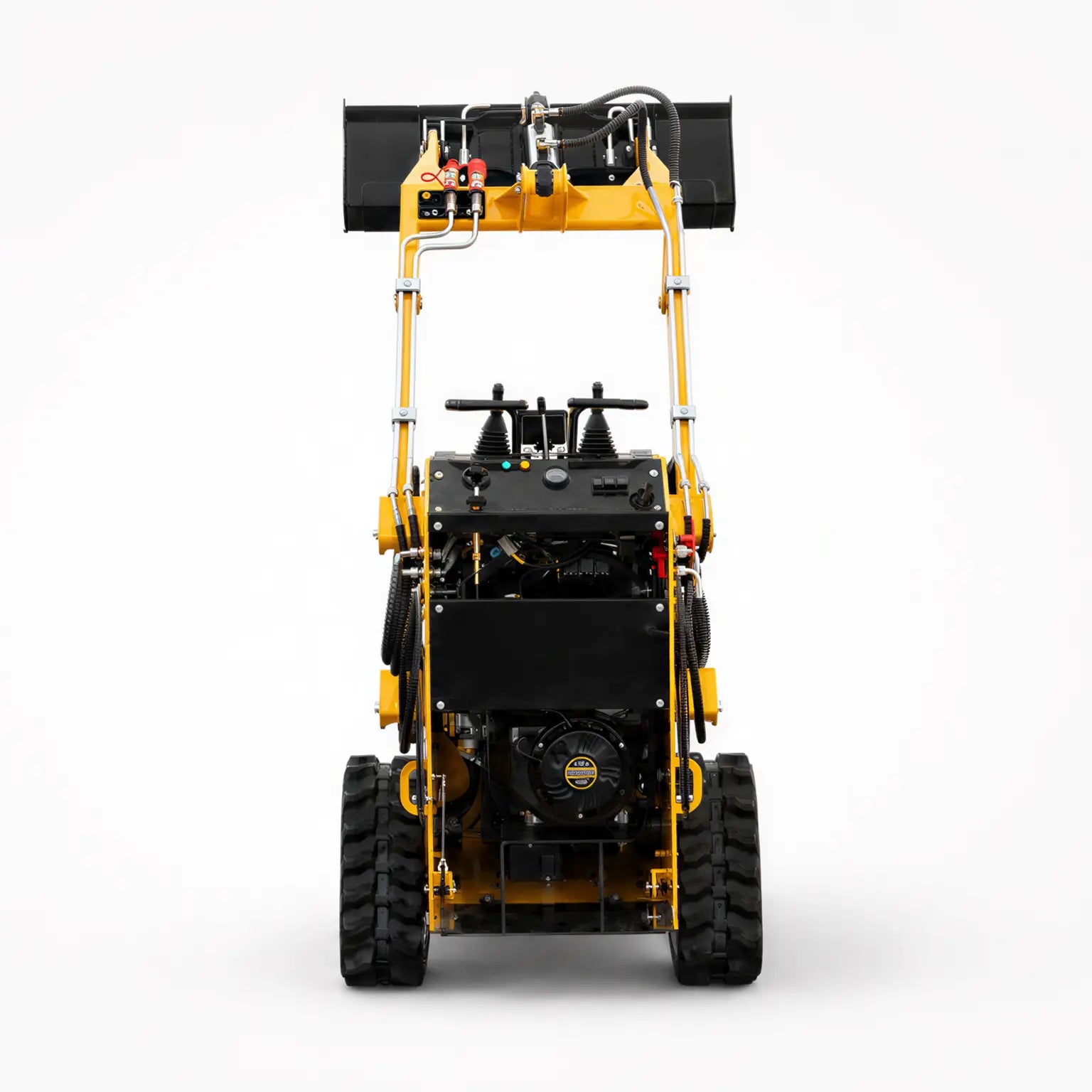

The T360 mini tracked skid steer loader is designed for confined work areas, uneven ground and jobs that require frequent task changes. Its compact 910 mm body width, rubber track system and 360-degree maneuverability make it well suited to construction sites, landscaping, farms, barns, warehouses, docks and property maintenance.
Key Features
• Compact and flexible design for narrow spaces
• High-stability triangular rubber tracks

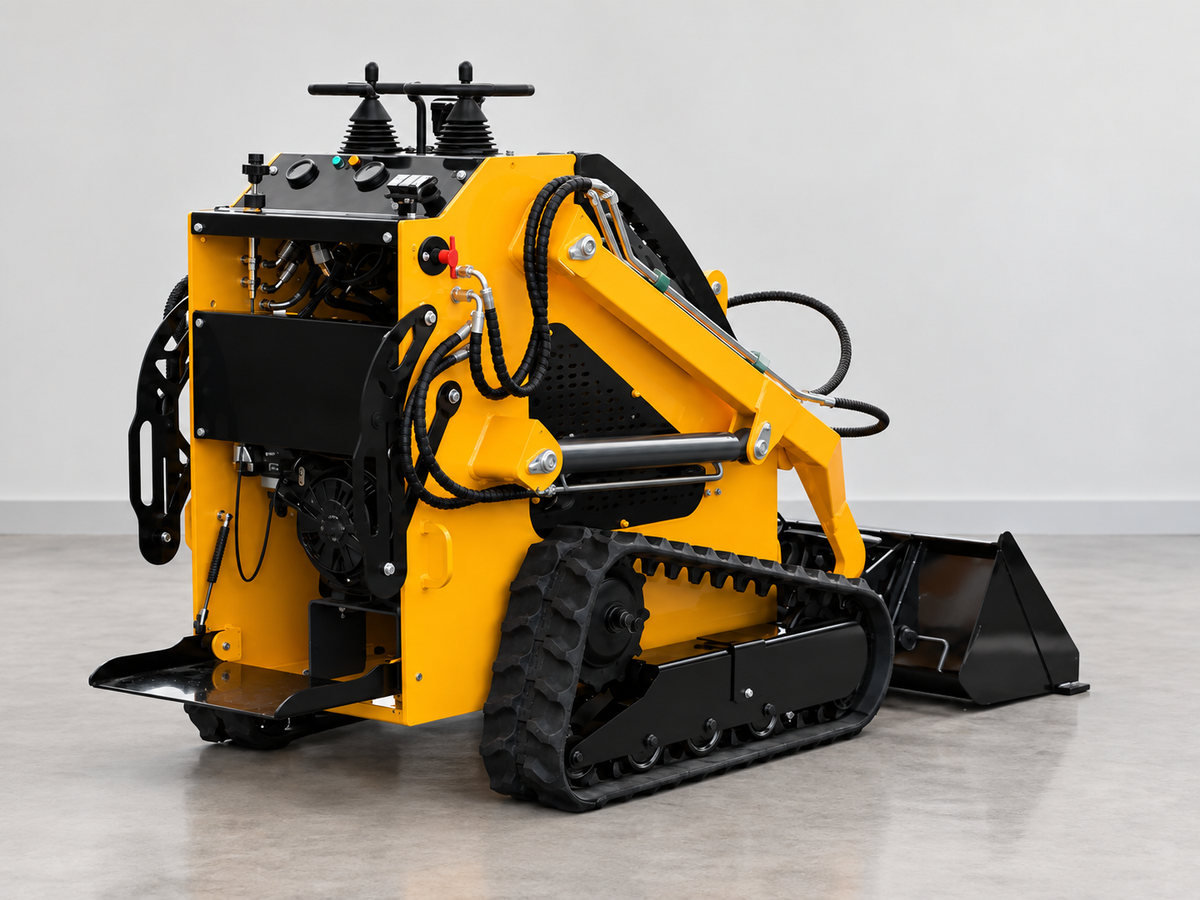

• Simple controls and easy transportation
• Thickened high-quality steel construction
• Powder-coated finish for corrosion resistance
• High-efficiency hydraulic oil cooler
• High-quality travel motor
• 360-degree body rotation
Performance Specifications
• Operating weight: 941 kg
• Rated load: 200 kg
• Maximum load: 300 kg
• Bucket capacity: 0.1 m³
• Bucket width: 1,050 mm
• Travel speed: 0–6 km/h
• Gradeability: 25°
• Maximum breakout force: 3.5 kN
• Rated hydraulic pressure: 16 MPa
Dimensions and Reach
• Overall dimensions: 2,092 × 1,050 × 1,300 mm
• Vehicle width: 910 mm
• Length with bucket: 2,092 mm
• Length without bucket: 1,726 mm
• Maximum operating height: 2,400 mm
• Maximum loading height: 1,720 mm
• Maximum dumping height: 1,386 mm
• Height to bucket pin: 1,857 mm
• Ground clearance: 173 mm
• Dumping distance: 250 mm
• Track contact length: 900 mm
• Track model: 180 × 72 × 35
Power Options
Manufacturer documentation lists a 72 V 125 Ah battery configuration and KOOP, Rato or Briggs & Stratton engine options. Available configuration, emissions certification and final specifications must be confirmed when ordering.
Applications

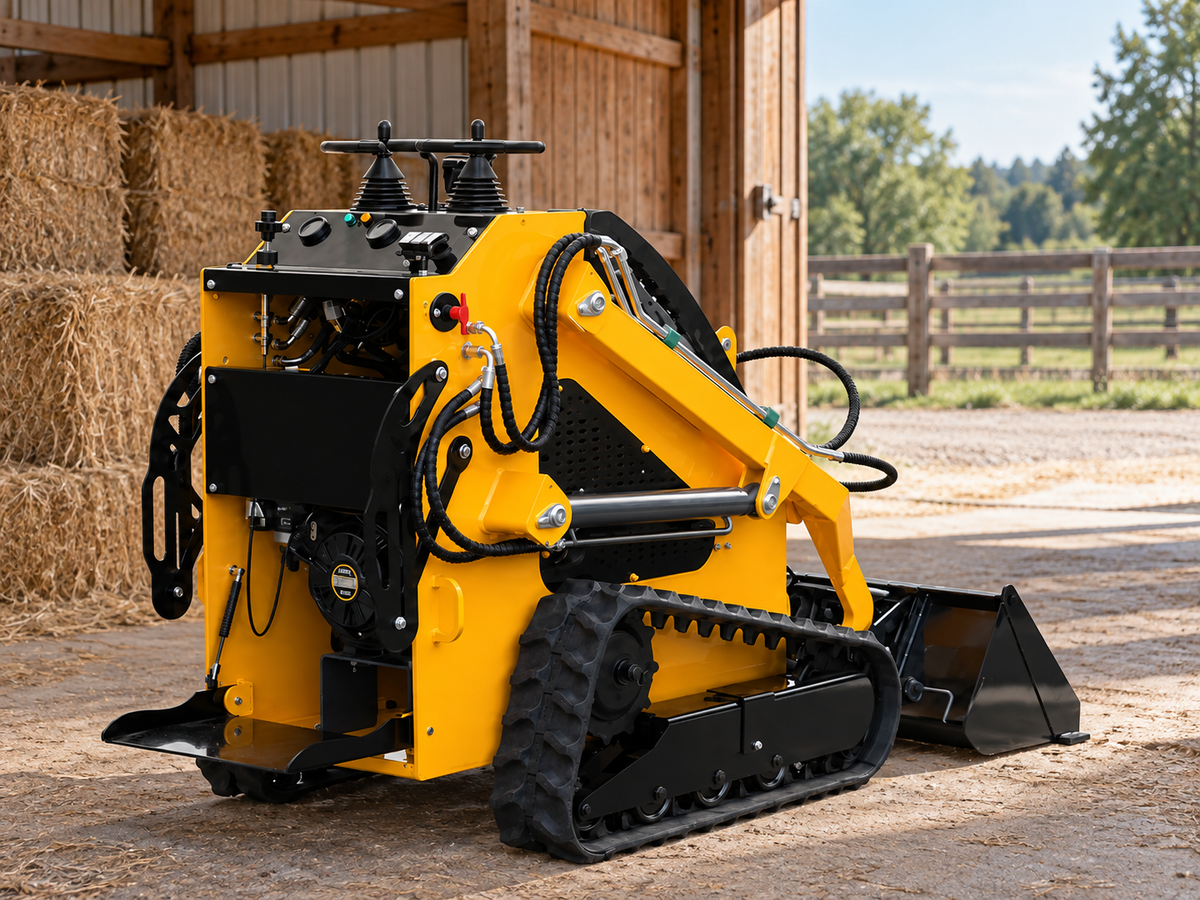

Suitable for infrastructure work, industrial sites, dock loading, urban streets, residential projects, barns, livestock sheds and auxiliary work alongside larger construction equipment.
Contact us before ordering to confirm the power configuration, attachments, lead time and freight arrangements.
